R-3014 Large Format Waterjet In Action

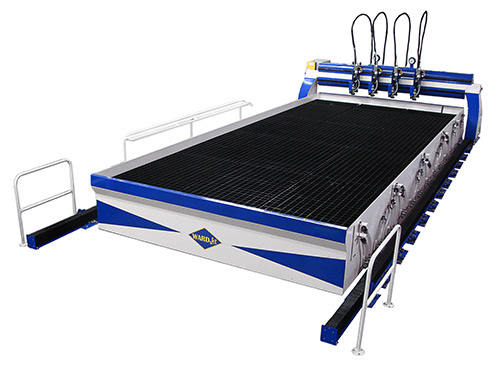

R-3014
LARGE FORMAT, HIGH PRECISIONWARDJet's R-3014 is a workhorse that allows multiple, large sheets of material to be loaded and cut at the same time.
Toggle Imperial or Metric
Spec | Detail |
---|---|
Footprint | 41.8' x 20.8' |
One Carriage X-Y Cutting Area | 30' x 13.1' |
Two Carriage X-Y Cutting Area | 30' x 14.1' |
Software | Ikuhlu, WARDCAM, IGEMS |
Power Requirements (Gantry Only) | 230V, 30 amps, 3 Phase |
Air Requirements | 80 psi, 2 cfm |
Max Number of Z-Carriages | 6 |
Bulk Feed Hopper | 1100 lb pressurized |
Drive Mechanism | Y-axis beam is ball screw driven. X-axis are helical rack and split pinion driven. |
Linear Positional Accuracy | ± 0.010 " per axis |
Repeatability | ± 0.005" per axis |
Speed | 0.01 in/min - 500 in/min based on 230 volts |
See it in Action
Also to Consider
Additional Information
Save on your TaxesDeduct up to $1M with Section 179
Made in AmericaManufactured in the USA
What can waterjets cut?
Wood, Stone, Composites, Sheet Metal, Foam, Food, Glass and much, much more...
How do we keep our prices down?
This has been achieved by pioneering an innovative business model specifically aimed at helping our customers. Simply put, we cut out all of the middlemen and high cost centers that do not directly contribute to the building of a great waterjet system.
Why the extra foot of travel?
Often, when adding a second cutting head, the distance the first cutting head can move is reduced to make space for the additional head. We added the extra foot of travel to "park" the second head when not in use. This allows you to have full range of the first cutting head when the second is not in use.
Why the independent carriages?
The benefit of having separate cutting heads on completely independent Z-Carriages is the freedom the operator gets to place the heads as close or as far apart as desired within seconds. Each Z-Carriage has its own motor driven height adjustment, and can be configured to have an independent height sensor.
How thick can waterjet cut?
Waterjet can cut 10" thick stainless steel without too much difficulty, but can cut even thicker material (18" thick Titanium) if the application demands it.
