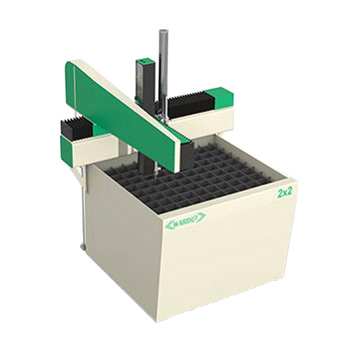

WARDKit 2x2 Waterjet Kit

Small and Affordable

Our smallest WARDKit, featuring a 2x2 cutting area, is the build-it-yourself version of our E-0606 waterjet. This compact yet rigid machine is excellent for prototyping and short production runs - the ideal solution for small job shops, universities, and R&D environments.

What's Included

What's included with my WARDKit?

  • 30HP Intensifier Pump
  • 400 lbs. Continuous Bulk Feed Hopper
  • Z-Carriage with Abrasive Cutting Head
  • PC-Based Laptop Controller
  • Ikuhlu CNC Controller Software Package
  • 1 seat of WARDCAM Software
  • 1-year parts warranty on non-consumable items
  • Ultra Orifice (Sapphire)
  • High Pressure Tubing to Cutting Head
  • Standard Mini Hopper
  • Abrasive Feed Tubing
  • 2200 lbs. of Garnet Abrasive
  • 5 hours of FREE Technical Support
  • 5-day build and training at WARDJet
WARDKit 2x2
WARDKit 2x2

Add WARDKit Plus

Includes everything in the kit plus:
  • WARDJet builds your waterjet
  • XL Controller Upgrade
  • Consumable Parts Kit
  • Doubled Support (10 hours total)
  • Additional seat of WARDCAM Software
  • Only 2 days of training
  • We show you how to install it
WARDKIT PLUS PACKAGE
  WARDKit 2x2 WARDKit Plus 2x2
Technical Support 5 Hours 10 Hours
Days Required at WARDJet 3 day build + 2 day training 2 day training
WARDCam Software 1 Seat 2 Seats
Motion Controller PC Based Laptop XL Controller
1 year Non-consumable parts warranty
CNC Controller Software
Z-Carriage with Abrasive Cutting Head
30HP Intensifier Pump
400 lbs Bulk Feed Hopper
2200 lbs. of Garnet Abrasive
Abrasive Feed and High Pressure Tubing
Ultra Orifice (Sapphire)
Waterjet Built by WARDJet
Consumable Parts Kit

We Build It. You Install It.

We understand – you’re busy. That’s why we developed the WARDKit Plus Package. It’s simple: WARDJet builds your WARDKit for you and shows you how to install it so that your business doesn't skip a beat. We’ll even give you 10 hours of free tech support in case you have any questions about getting started.
Learn More
Toggle Imperial or Metric
Spec Detail
Footprint 4.9' x 4.8'
One Carriage X-Y Cutting Area 2' x 2'
Two Carriage X-Y Cutting Area x
Software Ikuhlu, WARDCAM, IGEMS
Power Requirements 230V, 30amps, 3 Phase
Air Requirements 80 psi, 2 cfm
Max Number of Z-Carriages 1
Bulk Feed Hopper 400 lb Infini Hopper
Drive Mechanism Ball screw driven in X and Y axes
Linear Positional Accuracy ± 0.003" per axis
Repeatability ± 0.001" per axis
Speed 0.01 in/min - 500 in/min based on 230 volts

See it in Action

Additional Information

Save on taxes with Section 179

Save on your TaxesDeduct up to $500k with Section 179

Learn More

Waterjets Made In USA

Made in AmericaManufactured in the USA

Learn More

What can waterjets cut?
Wood, Stone, Composites, Sheet Metal, Foam, Food, Glass and much, much more...
How do we keep our prices down?
This has been achieved by pioneering an innovative business model specifically aimed at helping our customers. Simply put, we cut out all of the middlemen and high cost centers that do not directly contribute to the building of a great waterjet system.
Why the extra foot of travel?
Often, when adding a second cutting head, the distance the first cutting head can move is reduced to make space for the additional head. We added the extra foot of travel to "park" the second head when not in use. This allows you to have full range of the first cutting head when the second is not in use.
Why the independent carriages?
The benefit of having separate cutting heads on completely independent Z-Carriages is the freedom the operator gets to place the heads as close or as far apart as desired within seconds. Each Z-Carriage has its own motor driven height adjustment, and can be configured to have an independent height sensor.
How thick can waterjet cut?
Waterjet can cut 10" thick stainless steel without too much difficulty, but can cut even thicker material (18" thick Titanium) if the application demands it.
